Ubiquiti UniFi WiFi 7 Pro AP

DESCRIPTION

U7 Pro

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

WiFi 7 with 6 GHz support

6 spatial streams

140 m² (1,500 ft²) coverage

300+ connected devices

Powered using PoE+

2.5 GbE uplink

Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.

The WiFi Industry Standard

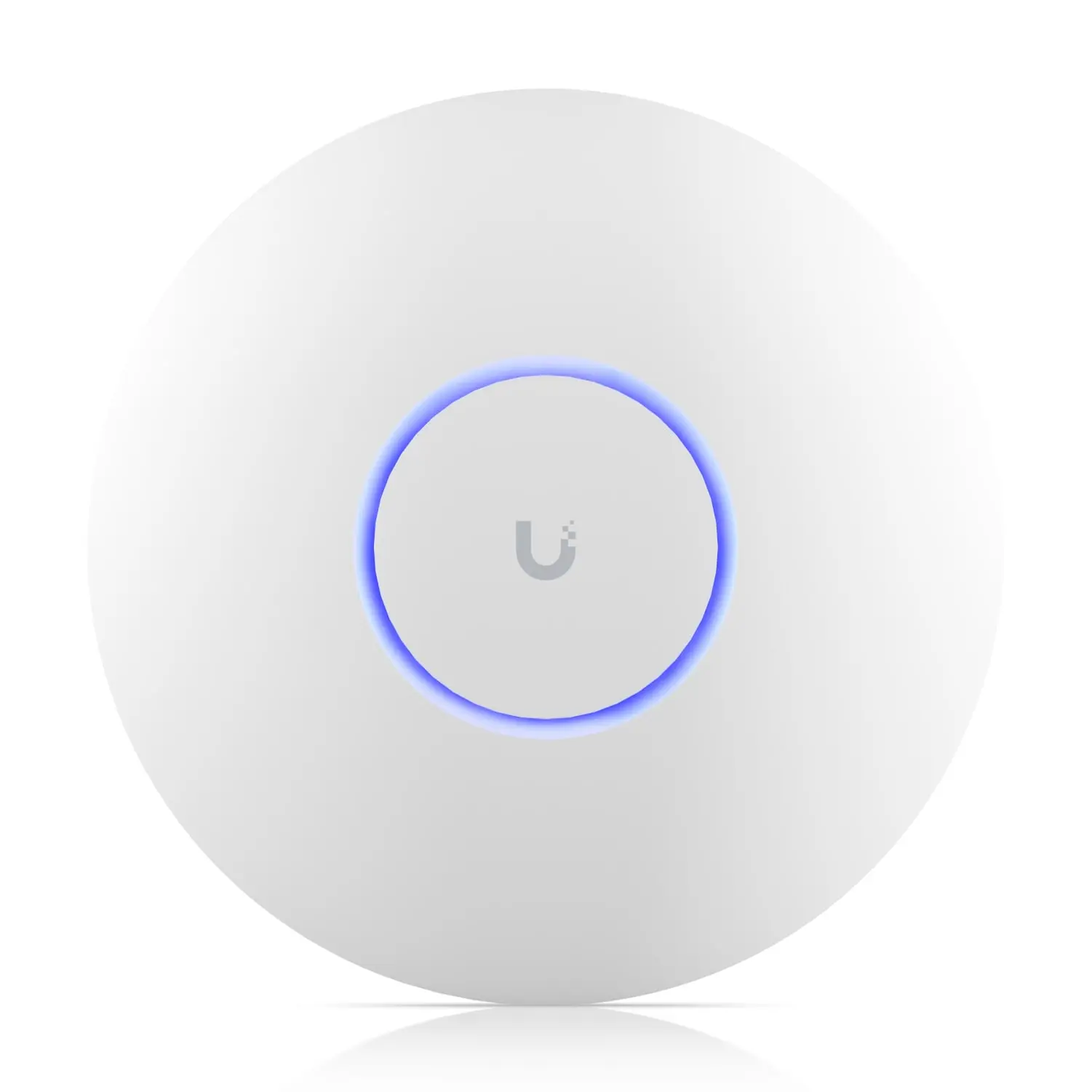

The Ubiquiti UniFi U7 Pro is an advanced Wi-Fi 7 access point designed for both business and high-density environments. It provides faster speeds and better reliability through its 6 GHz support and six spatial streams, allowing for more device connections and reduced interference.

Exceptional Device Capacity

Built for scalability, U7 Pro can accommodate over 300 devices, making it ideal for environments with heavy traffic, such as offices or campuses. Its 2.5 Gbps uplink and PoE+ power support ensure that it can handle significant network demands efficiently and cost-effectively.

Premium Surface Mounting

Thoughtfully designed for effortless installation.

Seamless Integration with the UniFi Ecosystem

The U7 Pro is compatible with existing UniFi ecosystems, making it a smooth upgrade for current users and a long-term investment for businesses aiming to future-proof their infrastructure.

Technical Specs

Mechanical

Dimensions

Ø206 x 46 mm (Ø8.1 x 1.8″)

Weight

680 g (1.5 lb)

Enclosure material

Polycarbonate, metal

Mount material

Stainless steel (SUS304), galvanised steel (SGCC)

Hardware

Networking interface

(1) 1/2.5 GbE RJ45 port

Management interface

Ethernet

Power method

PoE+

Power supply

UniFi PoE switch

Supported voltage range

44—57V DC

Max. power consumption

21W

Max. TX power – 2.4 GHz

22 dBm

Max. TX power – 5 GHz

26 dBm

Max. TX power – 6 GHz

23 dBm

MIMO – 2.4 GHz

2 x 2 (DL/UL MU-MIMO)

MIMO – 5 GHz

2 x 2 (DL/UL MU-MIMO)

MIMO – 6 GHz

2 x 2 (DL/UL MU-MIMO)

Max. data rate – 2.4 GHz

688 Mbps (BW40)

Max. data rate – 5 GHz

4.3 Gbps (BW240)

Max. data rate – 6 GHz

5.7 Gbps (BW320)

Antenna gain – 2.4 GHz

4 dBi

Antenna gain – 5 GHz

6 dBi

Antenna gain – 6 GHz

5.8 dBi

LEDs

White/blue

Button

Factory reset

Mounting

Wall/ceiling (Included)

Ambient operating temperature

-30 to 60° C (-22 to 140° F)

Ambient operating humidity

5 to 95% non-condensing

Certifications

CE, FCC, IC

Software

WiFi standards

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

300+

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

802.11ac

6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)

7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network

Version 8.0.26 and later

UniFi OS

Version 3.2 and later

Important Warranty Information:
•2-Year Warranty: Current promotion running from March 2024, all Ubiquiti items purchased during this period come with 2 years warranty.
•For items purchased outside the specified period (Before March 2024), the standard Manufacturer’s warranty duration is 1 year.

Ubiquiti UniFi Wi-Fi 7 Pro

SKU: U7-Pro

Description: Ceiling-mount WiFi 7 AP with 6 GHz support, 2.5 GbE uplink, and 9.3 Gbps over-the-air speed.

Tech Specs: Click Here
Installation Guide: Click Here

Features:
•WiFi 7 with 6 GHz support
•140 m² (1,500 ft²) coverage
•300+ connected devices
•Powered using PoE+
•2.5 GbE uplink
