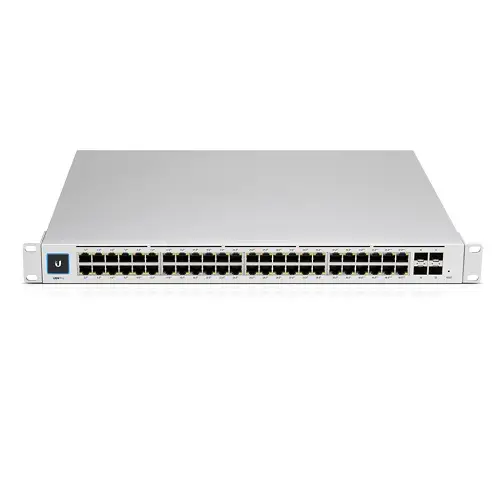

UniFi Switch Pro 48 PoE
Layer 3, PoE switch with (48) GbE RJ45 ports, including (40) 802.3at PoE+ ports and (8) 802.3bt PoE++ ports, and (4) 10G SFP+ ports.
Ubiquiti UniFi 48-port Managed Gigabit Layer2 and Layer3 Switch
$2,189.00
Ubiquiti UniFi 48-port Managed Gigabit Layer2 & Layer3 Switch, Auto-sensing 802.3at PoE+ & 802.3bt PoE, SFP+, Touch Display, 600W GEN2
Note: Managed with the UniFi Network application: Version 5.10.5 and later
Features:
- (1) 1.3″ LCM colour touchscreen with AR switch management
- (40) GbE, 802.3at PoE+ RJ45 ports
- (8) GbE, 802.3bt PoE++ RJ45 ports
- (4) 10G SFP+ ports
- (1) USP RPS DC input
- 600W total PoE supply
- Near-silent cooling
- Layer 3 switching features
Ideal Access Layer Switch
The Switch Pro 48 PoE is a fully managed switch with (40) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (4) 10G SFP+ ports. The USW Pro 48 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 48 PoE is the ideal access layer switch for any UniFi system. It combines up to 600W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
The Dual-WAN Gateway Pro offers an enterprise-grade firewall and a deep set of threat management features.
Operation mode (switching, mirroring, or aggregate) per port
Network/VLAN configuration
Jumbo frame and flow control services
Network settings
Storm control setting per port
Spanning tree configuration
802.1X control and RADIUS VLAN
Debug terminal option for command-line interface
Switching Evolved
Do UniFi Switches have Layer 3 functionality?
Yes, all UniFi Switch Pro and Enterprise models have Layer 3 switching features, including inter-VLAN routing, static routing, and DHCP.
Scalable UniFi Network Controller
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
Specifications
Mechanical
Dimensions
442.4 x 399.6 x 43.7 mm
Weight
With Rackmount Brackets
With Rackmount Brackets
6.25 kg
6.34 kg
Interfaces Networking
(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Management
Ethernet In-Band
Total Non-Blocking Throughput
88 Gbps
Switching Capacity
176 Gbps
Forwarding Rate
130.944 Mpps
Power Method
Universal Input: 100-240VAC/50-60 Hz
USP RPS DC Input: 52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply
AC/DC, Internal, 660W
Supported Voltage Range
100 to 240VAC
Max. Power Consumption (Excluding PoE Output)
60W
LEDs
System: Status
RJ45 Data Ports: PoE; Speed / Link / Activity
SFP+ Data Ports: Link / Activity
ESD / EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 40° C
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
PoE
Total Available PoE
600W
PoE Interfaces
Ports 1-40: POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
Ports 41-48: 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎 7, 😎
Max. PoE Wattage per Port by PSE
802.3at: 32W
802.3bt: 64W
Voltage Range 802.3af Mode
44 – 57V
Voltage Range 802.3at Mode
50 – 57V
Important Warranty Information:
•2-Year Warranty: Current promotion running from March to December 2024, all Ubiquiti items purchased during this period come with 2 years warranty.
•For items purchased outside the specified period (March to December 2024), the standard Manufacturer’s warranty duration is 1 year.
Ubiquiti Professional 48 PoE
SKU: USW-Pro-48-POE
Description: A 48-port, Layer 3 switch capable of high-power PoE++ output.
Tech Specs:Â Click Here
Installation Guide:Â Click Here
Features:
•(40) GbE PoE+, (8) GbE PoE++ ports
•(4) 10G SFP+ ports
•600W total PoE availability
•DC Power backup ready
•Layer 3 switching
•Near-silent cooling
| Dimensions | 39.96 × 44.24 × 4.37 cm |
|---|
