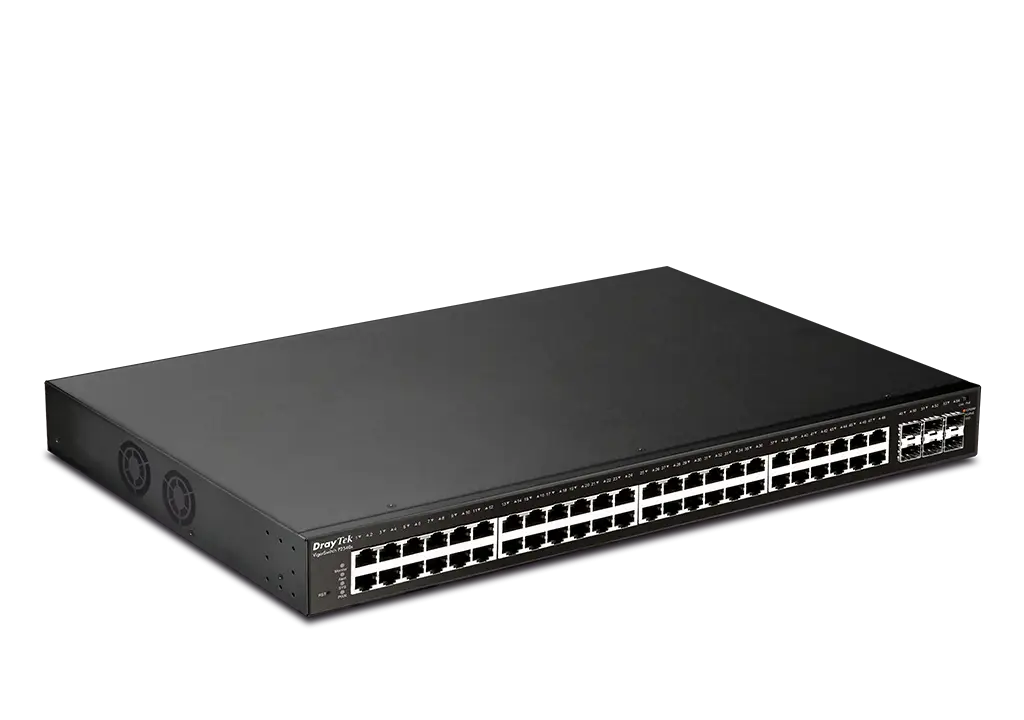

DrayTek VigorSwitch P2540xs Managed PoE Switch
$1,173.42
PoE+ (400W) L2+ Managed Gigabit Switch with 6 x 10GbE SFP+ slots, 48 x GbE ports, 1 x Console port, Auto Surveillance & Voice VLAN, ONVIF-Friendly and Central Switch Management
An Ideal Core Switch for SME/SMB
The DrayTek VigorSwitch P2540xs is a Layer 2+ Managed 10GbE PoE switch. It has 48 x GbE PoE+ ports providing 400W power budget and 6 x 10GbE SFP+ slots. Supporting advanced Layer 3 features, DHCP Server and VLAN Routing, the VigorSwitch P2540xs improves network efficiency and helps your network to work continuously even when the gateway is offline, making it ideally utilised as the core switch in SME/SMB.
Interface
Key Features
PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritising it with CoS, DSCP, and IP Precedence tag.
Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
Auto Surveillance & Voice VLAN
Recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritisation.
IPv6 Ready
VigorSwitch P2540xs supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
ONVIF-Friendly
Recognise ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
Web-Based GUI
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch PQ2121x to route the inter-VLAN traffic directly and offload the router.
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Central Switch Management
Set up VLANs easily from the router and get a centralised hierarchy view of the switches. Learn more
Access Control
VigorSwitch P2540xs supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
Advanced Layer 2+ Features
DHCP Server & VLAN Routing
Improving LAN Network Sustainability and Efficiency, with or without a Router
In a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.
L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.
As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.
Bind IP Address to MAC Address
Reserve an IP Address for an Important Device
As a DHCP Server, the Layer 2+ VigorSwitch P2540x can reserve IP addresses for important devices that are frequently accessed.
ONVIF-Friendly
Recognise ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance
Centralised Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Image Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
ONVIF Snapshot Alert
Locating Non-Responding IP Cameras Made Easy
It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.
To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
Management Solution
All-in-One Management |
|---|
Vigor Router SWM
- Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
Software Management |
|---|
VigorACS 3
- Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- Application Based SD-WAN Policy
- Customized Hotspot Page with Multilingual
- Hotspot Clients Analytics
- ACS Server Load Balancing / Failover
VigorConnect
- Auto-Discovery
- Auto-Provisioning
- Monitoring
- Centralised Hierarchy View
- Alarm
- Reboot VigorAP Remotely
- Scheduled Maintenance
In-the-Box
VigorSwitch P2540xs
Rack Mount Kit
Console Cord
Power Cord
Quick Start Guide
