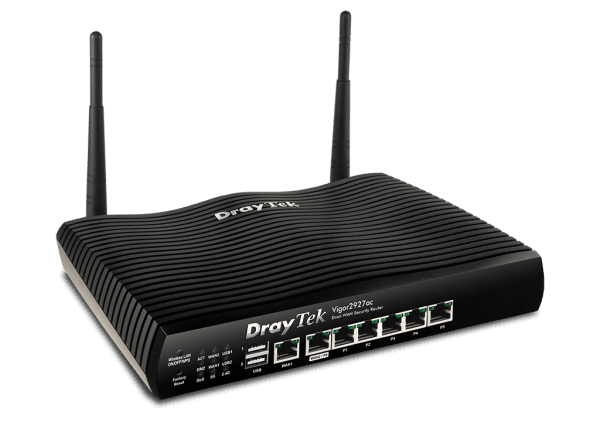

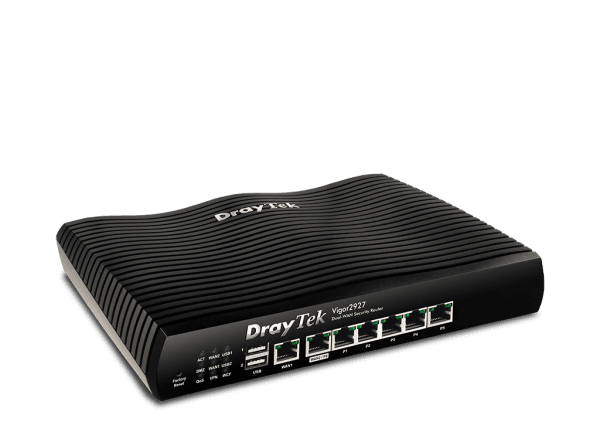

DrayTek Vigor2927 Series Broadband Router
Price range: $508.00 through $620.00
Dual-WAN broadband routers with 1 x fixed GbE WAN port and 1 x configurable GbE WAN/LAN port, 5 x GbE LAN ports, SPI Firewall, 802.11ax/ac Wi-Fi, and 50 x VPN tunnels including 25 x SSL-VPN tunnels
Dual Ethernet WAN Broadband Security Routers for SMBs
The Vigor2927 Series are dual-Ethernet WAN Firewall routers providing Load Balancing and Failover for reliable Internet accesses. Featuring VPN, QoS, Route Policy, Firewall, Content Filtering, Bandwidth Management, Captive Hotspot Portal and a lot more, these are the ultimate routers for SMBs. The series include models with built-in 802.11ax (WiFi 6, AX3000)/ 802.11ac Wi-Fi and a VoIP gateway (Vac model).
Vigor2927ax
802.11ax (WiFi 6, AX3000)
Performance Comparison: Vigor2927 vs. Vigor2926
NAT throughput (1.6 times faster)
Vigor2927 Series
Vigor2926 Series
IPSec throughput (3.6 times faster)
Vigor2927 Series
Vigor2926 Series
SSL-VPN throughput (2.7 times faster)
Vigor2927 Series
Vigor2926 Series
Key Features
Load Balancing
Maximise throughput and reliability by using multiple Internet connections. Learn more
Bandwidth Management
Prevent one device using all the bandwidth with bandwidth limit policy, session limit policy, and QoS settings.
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of the Vigor2927 Series to remote offices and teleworkers over the Internet. Learn more
Hotspot Web Portal
Market your business and communicate with guests by offering hospitality Wi-Fi. Learn more
SSL VPN
SSL VPNs work through firewalls providing secure remote access to any network environment. Learn more
Wireless WAN (ac/Vac models only)
Get Internet access wirelessly from a Wi-Fi network, a mobile hotspot, or a personal hotspot set up on smartphones. Learn more
VPN Matcher
Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN. Learn more
DrayDDNS
Free DDNS service to access the router using a fixed hostname of your choice. Learn more
Firewall & Content Filter
Filter web pages by URL keywords or web category to block access to insecure or inappropriate content.
Central AP Management
Use the Vigor2927 Series router as a wireless controller to maintain and monitor VigorAPs. Learn more
VoIP Friendly
Vigor2927 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless. Setup Guide
Central Switch Management
Set up VLANs easily from the router and get a centralised hierarchy view of the switches. Learn more
Hardware Acceleration
Without sacrificing traffic control features such as QoS, Bandwidth Limit, WAN Budget, Traffic Graph and Data Flow Monitor, Hardware Acceleration enhances performance for:
- NAT & routing connections
- QoS
- IPsec VPN
Hardware NAT & Routing
With Hardware Acceleration and Hardware QoS enabled, the router supports up to 8k NAT and routing connections, and firewall performance reaching 940Mbps on single WAN and 1.8Gbps combined performance on multi-WANs.
Dual WAN (Ethernet + DSL)
2.3x Faster NAT Performance
with Hardware NAT & Routing
without Hardware NAT & Routing
Single Ethernet WAN
1.2x Faster NAT Performance
with Hardware NAT & Routing
without Hardware NAT & Routing
Hardware QoS
Hardware QoS allows prioritization of applications and services on DrayTek routers, to improve performance of critical applications such as VoIP, conferencing and video streaming, etc. Furthermore, it allows flexible bandwidth allocation to suit business requirements.
Dual WAN (Ethernet + DSL)
2.6x Faster QoS Performance
with Hardware QoS
with Software QoS
Single Ethernet WAN
1.3x Faster QoS Performance
with Hardware QoS
with Software QoS
Hardware IPsec
While the Vigor2927 series already has improved IPsec performance over the previous Vigor2862 series, with Hardware Acceleration enabled, IPsec performance can now reach 800 Mbps. The first 16 tunnels are automatically accelerated on a first come first serve basis. If any drops out, a new tunnel will be put into the accelerator automatically to top off 16 accelerated tunnels.
2.7x Faster IPsec Performance
with Hardware IPsec
with Software IPsec
App QoS
Application QoS allows prioritisation of applications and services on DrayTek routers to improve and enhance critical applications such as VoIP, conferencing and video streaming, etc. It also allow flexible bandwidth allocation to suit business requirements.
VoIP First
VoIP is always a top priority! The default VoIP port, UDP 5060 (configurable) has priority out-of-box with QoS.
Improve Experience for Business-Critical Apps
Select your business critical apps, and easily put them into QoS classes.
Flexible Bandwidth Allocation
Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.
New OFDMA Feature for 802.11ax (WiFi 6) – Vigor2927ax only
Higher Transmission Efficiency with OFDMA
OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.
With legacy OFDM, each frame is transmitted across the entire channel width. When the transmission rate is low, this causes more latency and jitters and lower the overall efficiency.
OFDMA splits a single frame into groups of subcarriers, and each subcarrier can be sent simultaneously. With multiple access mode, it allows multiple users to transmit at the same time thus improving efficiency and enhancing user experiences in high density environments.
OFDM
OFDMA
802.11ax (WiFi 6) Downlink & Uplink MU-MIMO (Vigor2927ax only)
802.11ax (WiFi 6) BSS Colouring (Vigor2927ax only)
In traditional 802.11 Wi-Fi networks, access points are designed to wait and take turns if other signals of the same frequency are detected from adjacent access points. This sharing of a resource, in this case radio frequencies, is called a basic service set (BSS). 802.11ax adds Colouring to the BSS information being broadcast so that APs can use the same channel at the same time without having to take turns. This increases Wi-Fi efficiency, particularly in high density environments.
In the diagram here, AP1 and AP4 are using Channel 1 simultaneously, which normally means they would have to take turns if transmitting information at the same time. However, using BSS Colouring, the 2 APs can now transmit simultaneously without waiting.
An 802.11ax AP using BSS Colouring has the ability to change its BSS Colour if it detects another AP using the same BSS Colour on the same frequency.
AP-Assisted Roaming – built-in in selected Wi-Fi Vigor Routers and all Vigor Access Points
Extend Transmission Range
When a Wi-Fi client moves out of its effective transmission range which is defined by the Basic Rate and/or Received Signal Strength threshold, the AP forces the Wi-Fi client to pick up a nearby access point with stronger signals thereby extending the range.
Improve Data Rates
When the “Minimum RSSI with Adjacent AP” option is set, APs or routers on the same local subnet will exchange client information with each other and switch to the AP or router that has the strongest signal, ensuring that data rates can be as good as possible.
Better User Experience
Instead of ineffective transmission with low basic rates or RSSI, the better links provide better user experience while saving the airtime.
No Controller Required
Assisted Roaming is a built-in feature in all Vigor Access Points and a number of Wi-Fi routers; it saves the need for an ad-hoc wireless controller and is an ideal solution for simple network deployments.
Hotspot Web Portal
Market your business while offering free Wi-Fi
Wi-Fi Marketing
Redirect hotspot guests to the company homepage, online surveys, or display a promotion message.
Grow Customer Mailing List
Require guests to leave contact info or social media accounts before they can use the Internet services.
Various Authentication Types
A variety of login methods are supported to meet your business needs, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.
3rd-Party Service Compliant
Supports external captive portal authentication so you can keep using the Wi-Fi marketing solution you prefer.
Data Quota Management
Bandwidth management is integrated into the Hotspot features to control the bandwidth and session usage of the Hotspot guests.
Management Solution
| All-in-One Management | ||
|---|---|---|
 Mesh (ac model) |
 Central Switch Management |
 Central AP Management |
|
|
|
| Software Management | |
|---|---|
 VigorACS 2 |
 VigorACS 3 |
|
|
In-the-Box
Vigor2927/ax/ac/Vac
Antenna x 2
(ax/ac/Vac model)
RJ-45 Cable
(Ethernet)
Power Adaptor
Quick Start Guide
Note :
The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
| Dimensions | N/A |
|---|
