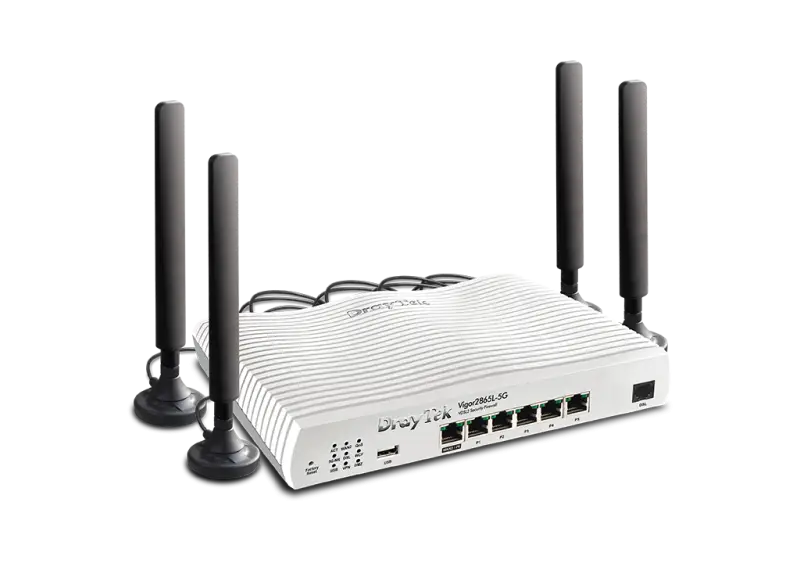

DrayTek Vigor2865L 5G Series Router

5G NR Sub-6 SA Band: n1, 3, 5, 7, 8, 20, 28, 38, 40, 77, 78
5G NR Sub-6 NSA Band: n1, 3, 5, 7, 8, 20, 28, 38, 40, 77, 78
5G Max. Data Rate NR SA: 2.4Gbps (DL) / 900Mbps (UL)**
5G Max. Data Rate NR NSA: 3.4Gbps (DL) / 550Mbps (UL)**
LTE FDD Band: B1, 3, 5, 7, 8, 20, 28
LTE TDD Band: B38, 40
LTE Category: Cat19 (DL) / Cat18 (UL)
WCDMA (3G) Band: B1, 8
WCDMA Max. Data Rate: 42Mbps (DL) / 5.76Mbps (UL)

The Vigor2865L-5G series routers offer most of the features of the Vigor2865 series, with the addition of an integrated 5G/4G LTE mobile broadband Nano SIM module, supporting speeds up to 10 times faster than 4G. This enhanced LTE capability makes the Vigor2865L-5G series routers ideal for applications such as:

1. Remote location with no fixed line or NBN/UFB coverage
2. Quick setup for new branches waiting for xDSL/Ethernet WAN (e.g. NBN deployment)

3. Load Balancing or Failover backup for an existing primary internet connection such as Cable/NBN/ UFB Ethernet broadband
4. Temporary installations such as disaster recovery, emergency, exhibitions and sporting events where internet access is required for a short period
5. Providing internet access on public transport such as coaches, buses, trains and freighters

The Vigor2865L-5G series includes one VDSL2 35b modem, one Gigabit Ethernet WAN/LAN configurable port, five Gigabit Ethernet LAN ports, and a dual Nano SIM card slot for 5G/4G LTE broadband connectivity, allowing for a second Nano SIM to be installed for failover. The WAN ports support NBN technologies including FTTP/N/B/C, HFC, Satellite and Fixed Wireless. All WAN interfaces, including the 3G/4G USB WAN interfaces, can be configured to Load Balance mode or Failover mode.

Vigor2865 Series

Vigor2862 Series

Vigor2865 Series

Vigor2862 Series

Vigor2865 Series

Vigor2862 Series

• The integrated 5G/LTE modem with Category 19 supports carrier aggregation, providing high-speed mobile broadband connectivity for Internet access and VPN.
• The dual SIM slot accepts two SIM cards from different mobile network providers. This ensures that the router can seamlessly switch to the secondary SIM and cellular network if the primary mobile connectivity is broken.
• The four LTE antennas with 1-metre extension cables make it easy to place the router at locations that ensure the best possible signal coverage.

* Backwards compatible to 4G LTE

The Vigor2865L-5G Series supports high throughput from Gigabit Internet connectivity via Fibre to the Premises (FTTP) and 5G LTE mobile connections. All active WANs automatically join the WAN Load Balance pool to optimise bandwidth utilisation

If an Internet connection is lost, the router automatically switches to surviving WAN connections, seamlessly transferring traffic. This ensures reliable Internet connectivity and avoids the costs associated with network downtime.

Routing policies can be used to designate specific WAN interfaces for traffic from or to certain IP ranges, and for applications such as VoIP, thus enhancing network efficiency and performance.

Ideal VPN Router for SMB

• Up to 800 Mbps hardware-accelerated IPsec VPN performance
• Up to 32 active VPN tunnels concurrently

All common VPN standards are supported

• WireGuard VPN (from firmware v4.4.3)
• IKEv1/IKEv2 EAP/ SSL VPN/ L2TPoverIPsec/ PPTP/OpenVPN

Advanced Authentication for Teleworkers

• Two-factor authentication for teleworker VPN connections
• Authentication can be integrated with Active Directory (LDAP), RADIUS, or TACACS+ servers in the network as required
• Network administrators can be notified via SMS/Email when a teleworker VPN is online, preventing VPN credential loss or misuse by others

Redirect hotspot guests to the company homepage, online surveys, or display a promotion message.

Require guests to leave contact info or social media accounts before they can use the Internet services.

Various login methods are supported to meet business needs, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.

Supports external captive portal authentication so you can keep using the Wi-Fi marketing solution you prefer.

Bandwidth management is integrated into the Hotspot features to control the bandwidth and session usage of the Hotspot guests.

IP addresses and services can be grouped into objects before being applied to firewall rules. This feature simplifies the organisation of network activities.

APP Enforcement (APPE) allows the blocking of applications (IM, P2P, streaming, tunnelling, etc.) on a network quickly and easily. For example, by blocking DoH servers in browsers, LAN clients can only use standard DNS queries and filtering.

The DrayTek Firewall manages not only traffic between LAN and WAN, but also between LAN subnets, remote VPN subnets, and from the WAN to the Vigor router itself. Internet IPs can be predefined for accessing the Vigor routers’ services, enhancing security and control.

The Web Content Filtering Service uses cloud-based technology to provide comprehensive and up-to-date protection for LAN clients for online activities, with 82 categories in total, 10 of which are security-focused.

Latency, loss, and jitter measure the quality of every WAN/VPN interface. Based on these metrics, the Vigor2865L-5G can dynamically self-adjust to the best-quality interface for VoIP and business-critical applications.

* SD-WAN requires cooperation with VigorACS 3

Application Visibility enables the network administrator to monitor data usage sorted by client, WAN interface, application, and time.

With data usage details, SD-WAN policies can be created to route business-critical applications through the best-quality interfaces to improve the user experience.

Application QoS allows prioritisation of applications and services on DrayTek routers to improve and enhance critical applications such as VoIP, conferencing and video streaming. It also allow flexible bandwidth allocation to suit business requirements.

VigorACS 3

• Zero Touch Deployment & Provisioning
• Auto VPN
• Interface Quality & SLA
• VoIP Optimisation & Monitoring
• Application Visibility
• Application Based SD-WAN Policy
• Customized Hotspot Page with Multilingual
• Hotspot Clients Analytics
• ACS Server Load Balancing / Failover
